Wilden Pump Solutions for New England
Wastewater, Chemical, and Food Beverage Solutions
Wilden Pump Features:
Wilden AODD Pump Benefits
Cut Compressed-Air Consumption
Wilden pumps reduce air consumption up to 60% lowering costs and emissions
Fewer Moving Parts
With a seal-less design Wilden pumps offer less downtime, faster rebuilds, and safer operation with corrosives and solvents.
Sanitary Pump Options
Wilden Pumps offer FDA approved pumps with free draining, Clean-in -Place friendly flow paths for hygienic processing.
Product Integrity at Risk from Shear Contamination, and Slow Changeovers?
Get hygienic, low‑shear transfer that cleans fast and protects quality
CIP‑friendly, low‑shear transfer that protects product integrity.

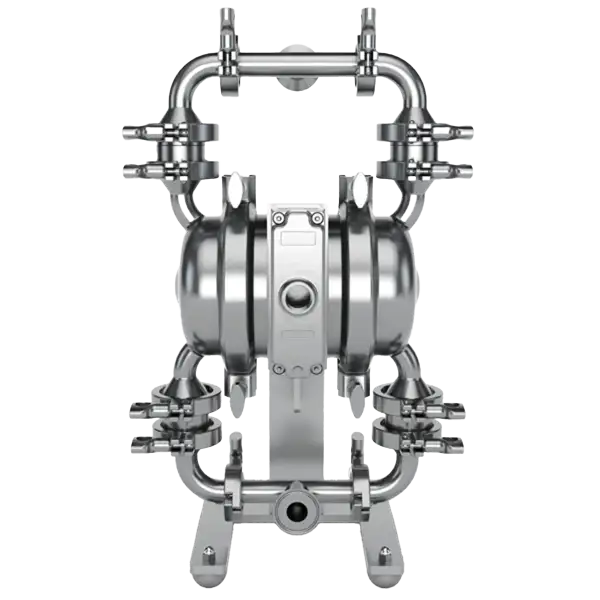

Saniflo™ HS Series Benefits
Low‑Shear, Gentle Handling
Preserves texture and quality when moving shear‑sensitive products—milk, whey, creams, fruit particulates, syrups, sauces, and wort—reducing breakage and foaming while maintaining yield.
Hygienic Flow Path & Fast Changeovers
Free‑draining internal geometry minimizes product hold‑up and microbial risk, enabling faster CIP/SIP cycles and shorter sanitation windows between runs.
Seal‑less Safety
AODD design eliminates mechanical seals and their common failure modes, reducing contamination risk and improving compliance for sanitary processing.
Material & Elastomer Compatibility
316L stainless wetted parts with FDA‑compliant elastomers (e.g., EPDM, PTFE) resist cleaning chemicals and process temperatures, supporting repeatable sanitation and long service life.
Maintenance Simplicity
Fewer moving parts and quick access to wear components mean shorter rebuilds and lower downtime, helping production stay on schedule.
Saniflo™ HS Product Data
- Flow Range: ~15–200 GPM (½″ → 2″)
- Max Pressure: up to 125 psi (8.6 bar)
- Solids Handling: up to ~⅜″ (fruit particulates, curds)
- Sizes Available: ½″, 1″, 1½″, 2″
- Wetted Materials: 316L stainless
- Elastomers: EPDM, PTFE (others on request)
- Temperature Range: elastomer‑dependent (e.g., EPDM/TPFE up to ~225°F)
- Sanitation: CIP/SIP‑friendly; free‑draining hygienic design
FDA compliant and easy to clean— beverages, sauces, and sugars

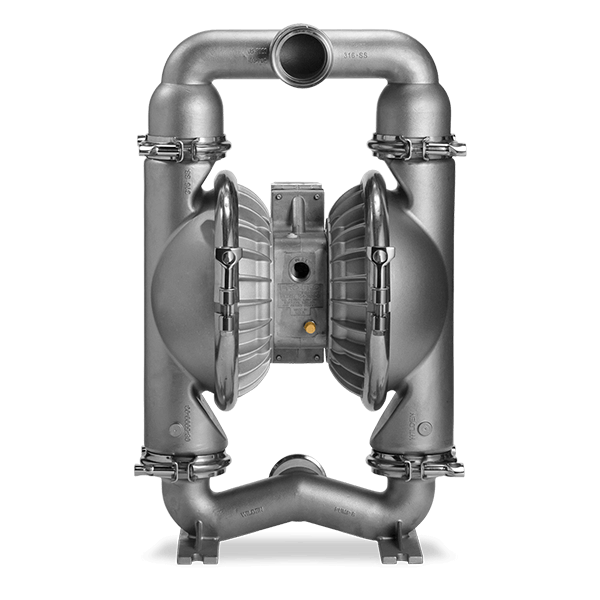

Saniflo™ FDA Series Benefits
Regulatory Confidence
FDA‑compliant constructions and elastomers support food‑grade processing requirements for beverages, sauces, syrups, sugars, and general sanitary duties.
Easy Cleaning & Quick Teardown
Straightforward disassembly and smooth internal surfaces reduce cleaning time and help maintain consistent sanitation results between batches.
Versatile Viscosity & Solids Handling
Moves viscous products and particulates without clogging, thanks to AODD solids passage and self‑priming capability—great for multi‑SKU lines and seasonal products.
Seal‑less Reliability
No mechanical seals means fewer leak points and less risk of product contamination or downtime from seal wear.
Operational Efficiency
Air‑operated simplicity and fewer moving parts reduce maintenance burden; optional configurations can align with energy‑reduction initiatives (when paired with Pro‑Flo® SHIFT on utility line
Saniflo™ FDA Product Data
- Flow Range: ~15–140 GPM (½″ → 1½″)
- Max Pressure: up to 125 psi (8.6 bar)
- Solids Handling: up to ~¼″–⅜″
- Sizes Available: ½″, 1″, 1½″
- Wetted Materials: 316L stainless; polypropylene options for certain duties
- Elastomers: EPDM, PTFE (others on request)
- Temperature Range: elastomer‑dependent (typ. up to ~225°F for PTFE)
- Sanitation: Designed for food‑grade, FDA‑compliant sanitary transfer
Ready to Improve Your CIP Process and Protect Product Quality?
Let Us Help You Find the Right Solution for Your Sanitary Processes.
Get detailed specs and compliance information
Schedule a 30-min audit with our pump experts
Solve Clogging, Dry-Run Events, and Reduce Compressed-Air Costs
Move Sludge and Dose Chemicals Reliably at Reduced Costs

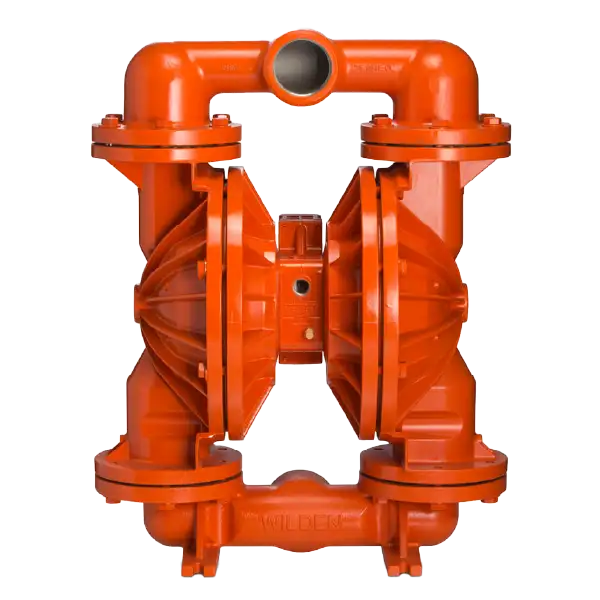

Wilden Metal Pro-Flo® SHIFT Series
Sludge Transfer, Polymer and Coagulant Dosing,
Metal Pro-Flo® Series Benefits
Stall Prevention
Thick sludge and variable-viscosity fluids often cause pumps to stall. The Pro-Flo® unbalanced spool design eliminates this issue, ensuring continuous operation and reducing costly downtime.
Energy Efficiency
The Pro-Flo® SHIFT Air Distribution System (ADS) automatically restricts air flow near the end of each stroke, cutting air consumption by up to 60% compared to traditional AODD pumps. This means lower utility bills and compliance with energy-saving mandates.
Solids Handling
Handles solids up to ¼ inch, making it ideal for sludge and grit-heavy streams without clogging or pre-screening.
Durability & Safety
Bolted construction provides superior containment for hazardous or abrasive sludge. No oil lubrication required, reducing maintenance costs and environmental risks.
Metal Pro-Flo® Series Data
- Flow Range: 90–220 GPM (size-dependent)
- Max Pressure: 125 psi
- Solids Handling: Up to 3″
- Sizes Available: 3″
- Materials: Aluminum, 316 SS
- Air Inlet: ½″ NPT
- Temperature Range: -40°F to 225°F (elastomer-dependent)

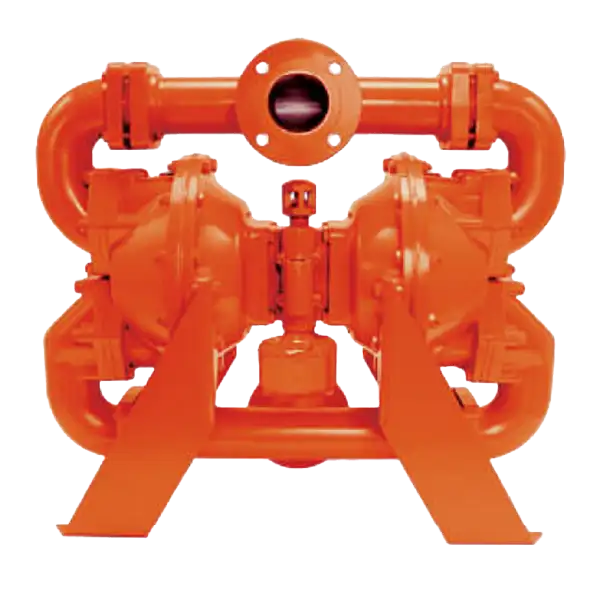

Wilden Brahma Pro-Flo® Series
Reliable sludge transfer with stall prevention and energy savings.
Extreme Solids Handling
Brahma pumps can pass solids up to 3 inches, making them ideal for grit-heavy sludge and debris-laden streams where standard pumps fail.
Energy Efficiency
Equipped with Pro-Flo® SHIFT ADS, Brahma pumps deliver up to 60% air savings, reducing operating costs and supporting sustainability goals.
Stall Prevention
The unbalanced spool design prevents stalling even under variable-viscosity conditions, ensuring uninterrupted operation.
Heavy-Duty Durability
Built for abrasive and challenging environments with bolted construction for leak-tight containment and long service life.
- Flow Range: 90–220 GPM (size-dependent)
- Max Pressure: 125 psi
- Solids Handling: Up to 3″
- Sizes Available: 3″
- Materials: Aluminum, 316 SS
- Air Inlet: ½″ NPT
- Temperature Range: -40°F to 225°F (elastomer-dependent)
Struggling with Sludge Clogging and Dosing Reliability?
See how Wilden pumps move sludge without clogging.
30‑minute audit to size the right pump.
Solve Leaks, Corrosion, and Downtime from Harsh Chemicals.
Wilden AODD Accu-Flo Line Delivers Safe, Seal-Less Transfer with Broad Chemical Compatibility.

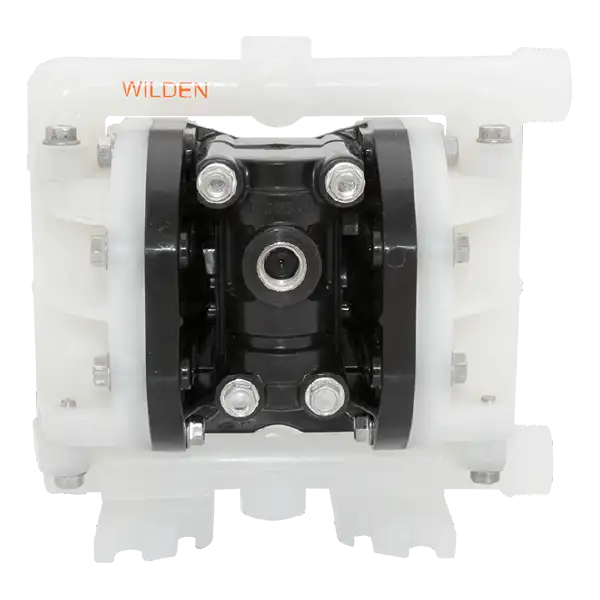

Wilden Pro-Flow® SHIFT Plastic Series
Chemical Compatibility
Built with PVDF or polypropylene wetted parts and PTFE elastomers, this pump resists aggressive chemicals like acids, caustics, and chlorinated solvents—reducing corrosion failures and extending service life.Energy Efficiency
The Pro-Flo® SHIFT Air Distribution System cuts air consumption by up to 60%, lowering operating costs and supporting sustainability goals.Seal-less Safety
No mechanical seals means fewer leak points and reduced fugitive emissions—ideal for hazardous chemical environments.Maintenance Simplicity
Fewer moving parts and bolted construction make rebuilds fast and containment secure, minimizing downtime.- Flow Range: 20–140 GPM (size-dependent)
- Max Pressure: 125 psi
- Solids Handling: Up to ⅜″
- Sizes Available: ¾″, 1″, 1½″
- Materials: PVDF, Polypropylene
- Air Inlet: ¼″–½″ NPT
- Temperature Range: -40°F to 225°F (elastomer-dependent)
Wilden Pro-Flo® Explosion-Proof Series
Explosion-Proof (ATEX) Certified Safety
Intrinsically safe operation for hazardous zones where explosive vapors or solvents are present—meeting compliance requirements for chemical plants.
Durability Under Stress
Bolted metal construction ensures leak-tight containment and long-term reliability in abrasive or solvent-heavy applications.
Energy Efficiency
Pro-Flo® SHIFT ADS delivers up to 60% air savings, reducing compressed-air costs without sacrificing flow or pressure.
Versatility for Harsh Fluids
Handles resins, pigments, and slurries without seal wear or cavitation—ideal for coatings and specialty chemical processes.
- Flow Range: 40–240 GPM (size-dependent)
- Max Pressure: 125 psi
- Solids Handling: Up to ½″
- Sizes Available: 1″, 1½″, 2″, 3″
- Materials: 316 SS, Aluminum
- Air Inlet: ¼″–½″ NPT
- Temperature Range: -40°F to 225°F (elastomer-dependent)
Unsure Which Wilden Model Meets Your Needs? Start Here
Discover the Wilden Model the Best Suites Your Application
Schedule an Application Audit
What are Some Other Pump Manufacturer's DL Thurrott Represents?
DL Thurrott's Pump Manufacturers
FIND THE PERFECT PUMP FOR YOUR APPLICATION
Our Team Is Ready to Help!
Our condensate and boiler feed specialists are ready to help you select the right solution for your system. Share your application details, and we’ll respond quickly with tailored recommendations and next steps.
